Description

DK50 2V for two dental units

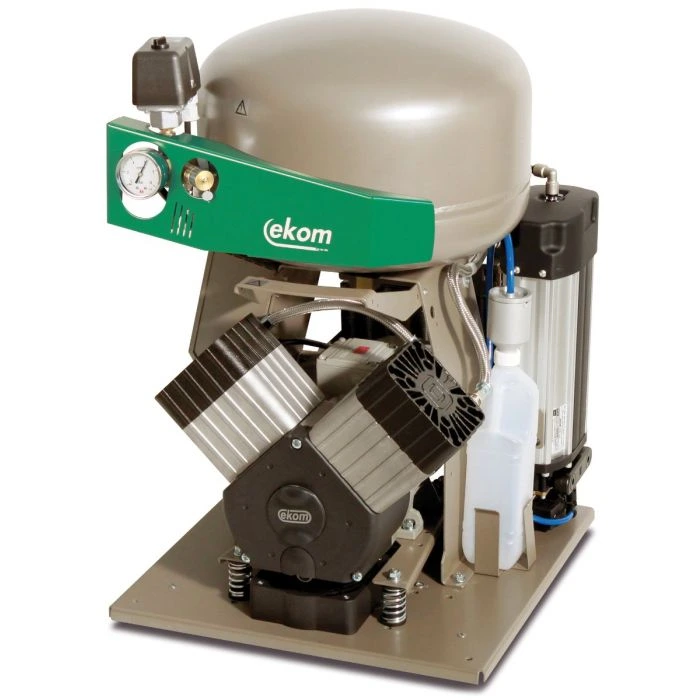

Oil-less compressor EKOM of the line DK50 2V is the source of clean, pressed, oil-free air designed for driving of dental appliances and equipment. With regard to its parameters and capacity of the air tank of 25 litres is suitable for supplying of one dental unit or devices in dental laboratories. Air produced by oil-free compressor provides a higher degree of hygiene and quality of work of the dentist and does not pollute the working environment by heterogeneous substances.

TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION DK50 2V DK50 2VS DK50 2V/M DK50 2VS/M
Number of dental units 2 2 2 2
Nominal voltage 230V/ 50 (60) Hz 230V/ 50 (60) Hz 230V/ 50 (60) Hz 230V/ 50 (60) Hz
3x400V/ 50 Hz 3x400V/ 50 Hz 3x400V/ 50 Hz 3x400V/ 50 Hz
Output of the motor 1,1 kW
1,2 kW (3×400/50) 1,1 kW
1,2 kW (3×400/50) 1,1 kW
1,2 kW (3×400/50) 1,1 kW
1,2 kW (3×400/50)
Compressor efficiency (working pressure 5-7bar) 140 l.min– 1/ 5 bar 140 l.min– 1/ 5 bar 108 l.min– 1/ 5 bar 108 l.min– 1/ 5 bar
Compressor efficiency (working pressure 6-8bar) 135 l.min– 1/ 6 bar 135 l.min– 1/ 6 bar 104 l.min– 1/ 6 bar 104 l.min– 1/ 6 bar
Compressor efficiency (working pressure 8-10bar) 110 l.min– 1/ 8 bar 110 l.min– 1/ 8 bar 87 l.min– 1/ 8 bar 87 l.min– 1/ 8 bar
Air tank capacity 25 lit. 25 lit. 25 lit. 25 lit.
Mode of operation S1-100% S1-100% S1-100% S1-100%
Degree of air drying – – atmospheric dew point -20oC atmospheric dew point -20oC
Noise level ≤ 67 dB [A] ≤ 51,5 dB [A] ≤ 69 dB [A] ≤ 55 dB [A] Weight*1 58 kg
56 kg (3×400/50) 96 kg
94 kg (3×400/50) 63 kg
61 kg (3×400/50) 101 kg
99 kg (3×400/50)
Dimensions (w x d x h)*1 460x500x720 mm 560x675x877 mm 460x565x720 mm 560x675x877 mm
*1Data on weight and dimension are for informational purposes only. They depend on particular version of the product.
